arrowChart.Rd

arrowChart() creates an pre-post arrow chart of averages and returns a ggplot object.

Usage

arrowChart(
  df,
  scale_labels,
  arrow_colors = "#283251",
  overall_n = TRUE,
  question_labels = NULL,
  question_order = FALSE,
  font_family = "Arial",
  font_size = 10
)

Arguments

df

Required, a tibble or data frame of numeric data that has items with the prefix of pre_ and post_.

scale_labels

Required, a character vector of labels for the response scale, must be in the desired order, e.g. if you have a 5 item scale of minimal to extensive it should look like this: levels_min_ext <- c("Minimal", "Slight", "Moderate", "Good", "Extensive").

arrow_colors

Required, defaults to dark blue BRE color code "#283251" for all values, a character vector of hex codes for colors to associate each item, needs to be the same length or longer than the items to place in the same chart.

overall_n

Logical, default is TRUE. If TRUE, returns an overall n for all questions that is in the upper left tag of the plot. If False, adds n to each question/item after the respective labels.

question_labels

Default is NULL. Takes in a named character vector to both supply labels the questions and sort the order of the questions. The named character vector should have the new labels as the "name" and the old labels as the "variable" sorted in the desired order of appearing in the plot, first item will appear at the top of the plot. See examples.

question_order

Logical, default is FALSE. If TRUE, the question order will be taken from the user supplied named character vector passed to question_labels, where the first item will be at the top of the plot and so on. If FALSE, the question order will be the questions with highest post score average on the top of the plot descending.

font_family

Character value to set the font family for all text in the chart, defaults to "Arial".

font_size

Numeric value to set the font size in points for all text in the chart, defaults to size 10.

Value

A ggplot2 object that plots the items into a arrow bar chart.

Examples

items <- dplyr::tibble(
  pre_Organization = c(1, 2, 3, 4, 5, 4, 3, 2, 1),
  post_Organization = dplyr::if_else(pre_Organization < 5, pre_Organization + 1, pre_Organization),
  pre_Source = c(2, 2, 3, 5, 4, 3, 2, 1, 2),
  post_Source = dplyr::if_else(pre_Source < 4, pre_Source + 2, pre_Source),
  pre_Publish = c(1, 1, 1, 2, 2, 2, 3, 3, 3),
  post_Publish = pre_Publish + 2,
  pre_Write = c(2, 2, 2, 3, 3, 3, 4, 4, 4),
  post_Write = pre_Write + 1,
  pre_Research = c(1, 1, 2, 2, 3, 3, 4, 4, 4),
  post_Research = pre_Research + 1
)
# Labels for response scales to recode the numeric variables to on the plot:
levels_min_ext <- c("Minimal", "Slight", "Moderate", "Good", "Extensive")
# Question labels as a named vector with the naming structure
# like this: c("new label" = "original variable name"):
question_labels <- c("Publish a lot of high quality papers" =  "Publish",
                     "Write a lot of research papers" = "Write",
                     "Research in a lab with faculty" = "Research",
                     "Organization of a large research project" = "Organization",
                     "Source work for a research paper" = "Source")

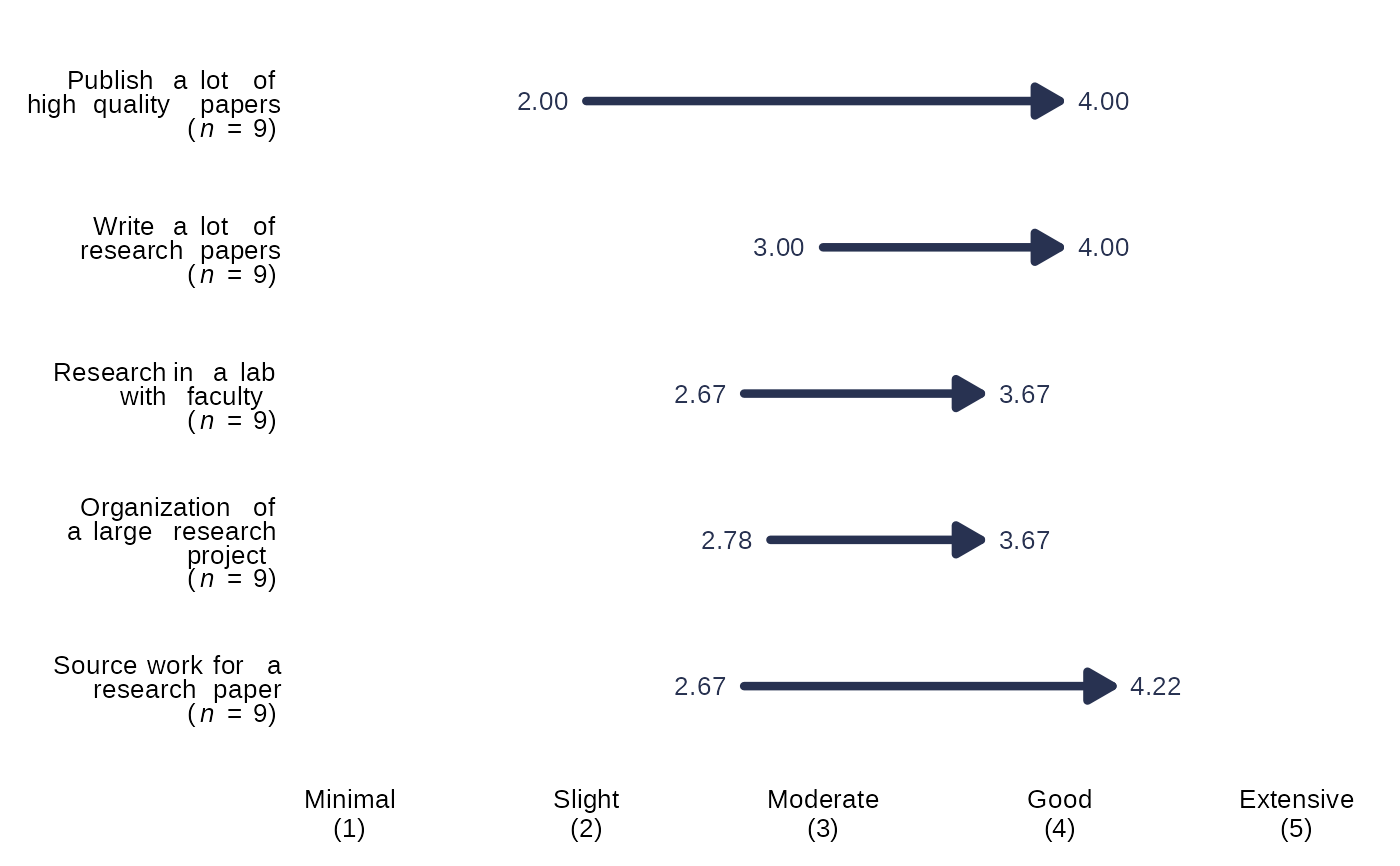

# Example with n for each question and original labels:
arrowChart(df = items, scale_labels = levels_min_ext, overall_n = FALSE,
           question_labels = NULL, question_order = FALSE)
